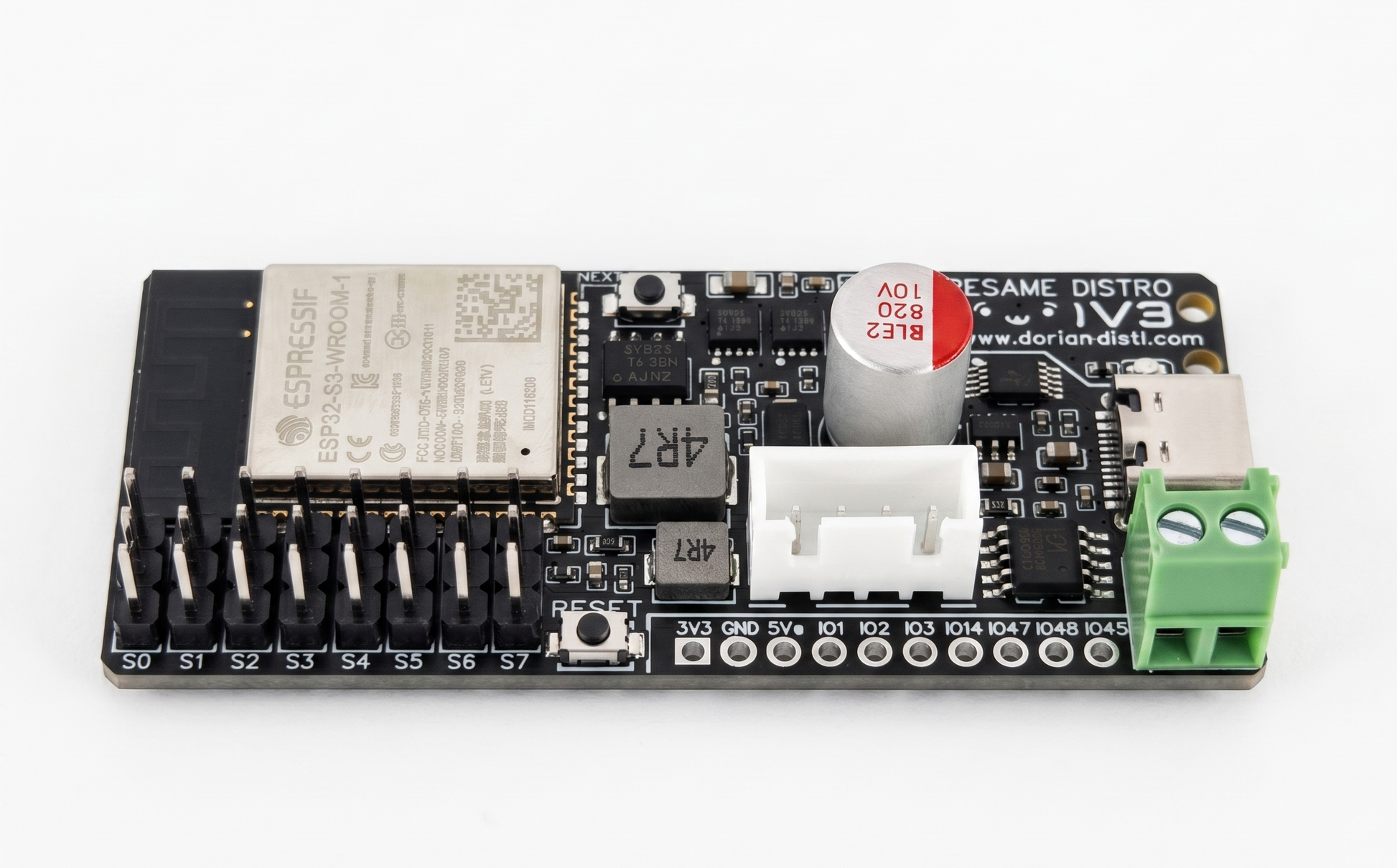

The Sesame Distro Board V3 is a powerful open-source development board built around the ESP32-S3 microcontroller. It delivers PWM output to up to 8 servo motors simultaneously, making it ideal for robotics and motion control projects.
This board supports dual power inputs: 12V 5A USB-C Power Delivery, and 5-12V battery input(used together or separately).
Two solderable pads allow you to enable power directly or connect an external power switch for convenient control. Key features include built-in WiFi and Bluetooth connectivity, compatibility with Arduino IDE and PlatformIO for easy programming, and a row of expansion pins for custom applications.
Rated for 2S-3S configurations with 5A-8A current capacity, it handles demanding micro-servo applications with room to grow. The board is fully open-source and actively improved. While future versions are planned, V3 remains an excellent choice for developers building servo-driven systems today.
